The user can view their link, coverage and multi-transmitter coverage studies in a 3D viewer taking into account the terrain orography and nearby buildings.

This option is available for both the studies and the results. In the latter case, the user must select the corresponding option when performing a calculation.

In the coverage study, this functionality is available from the coverage action panel. A 3D representation of the environment of the study sector is automatically generated. In addition, if there is an elevation layer compatible with this representation, the nearby buildings in an area of ​​1 km2 around the sector will be raised.

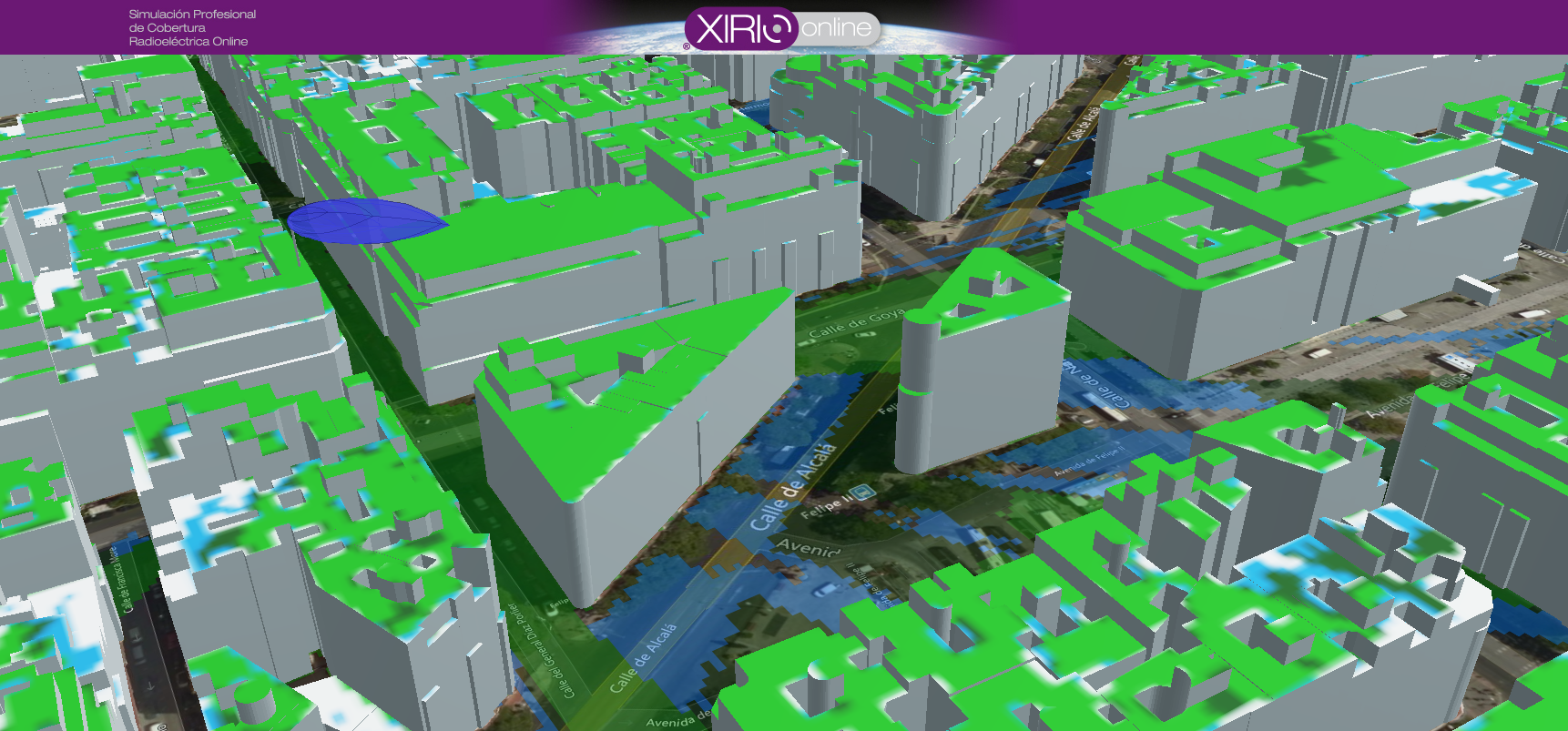

Furthermore, when launching a coverage calculation it is possible to select the option "Generate 3D result". With this option the generated coverage result will have an action to open the coverage result in the 3D viewer. A 3D representation of the coverage study area is automatically generated along with all buildings. The coverage will be visible both on the ground and on the buildings.

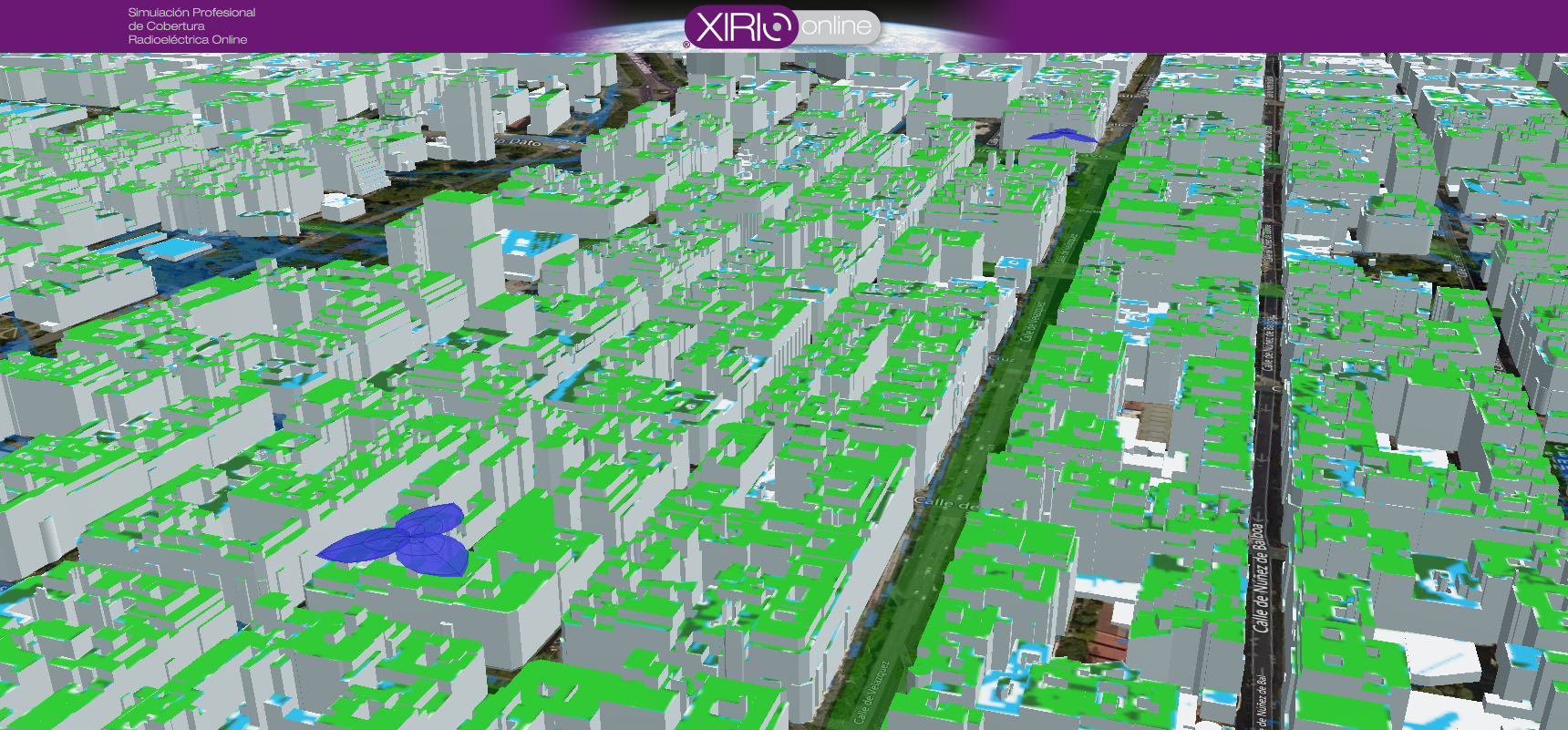

In the multitransmitter coverage study, this functionality is available from the study's actions panel. The user is prompted to click on the viewer. A 3D representation is automatically generated around that coordinate. Also, if there is an elevation layer compatible with this representation, the nearby buildings in an area of ​​1 km2 around that coordinate will be raised.

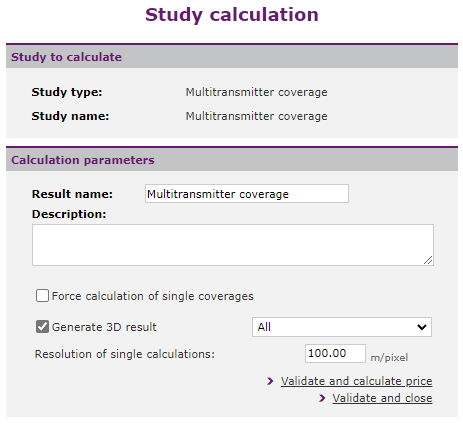

Also when launching a multi-transmitter coverage calculation it is possible to select the "Generate 3D result" option. The user can select the following options:

•Only multiple coverage result. The multitransmitter coverage result will have an option to open the result in the 3D viewer. A 3D representation of the coverage study area is automatically generated along with all buildings. The coverage will be visible both on the ground and on the buildings.

•Only individual results. The option to open the result in the 3D viewer will be available for each of the individual results that are calculated during the multitransmitter coverage calculation. If the individual studies were already calculated and they were not forced to be recalculated, the 3D visualization will not be generated.

•All. Both the multitransmitter coverage result and all the individual results that are calculated in the task will have an option to open the result in the 3D viewer.

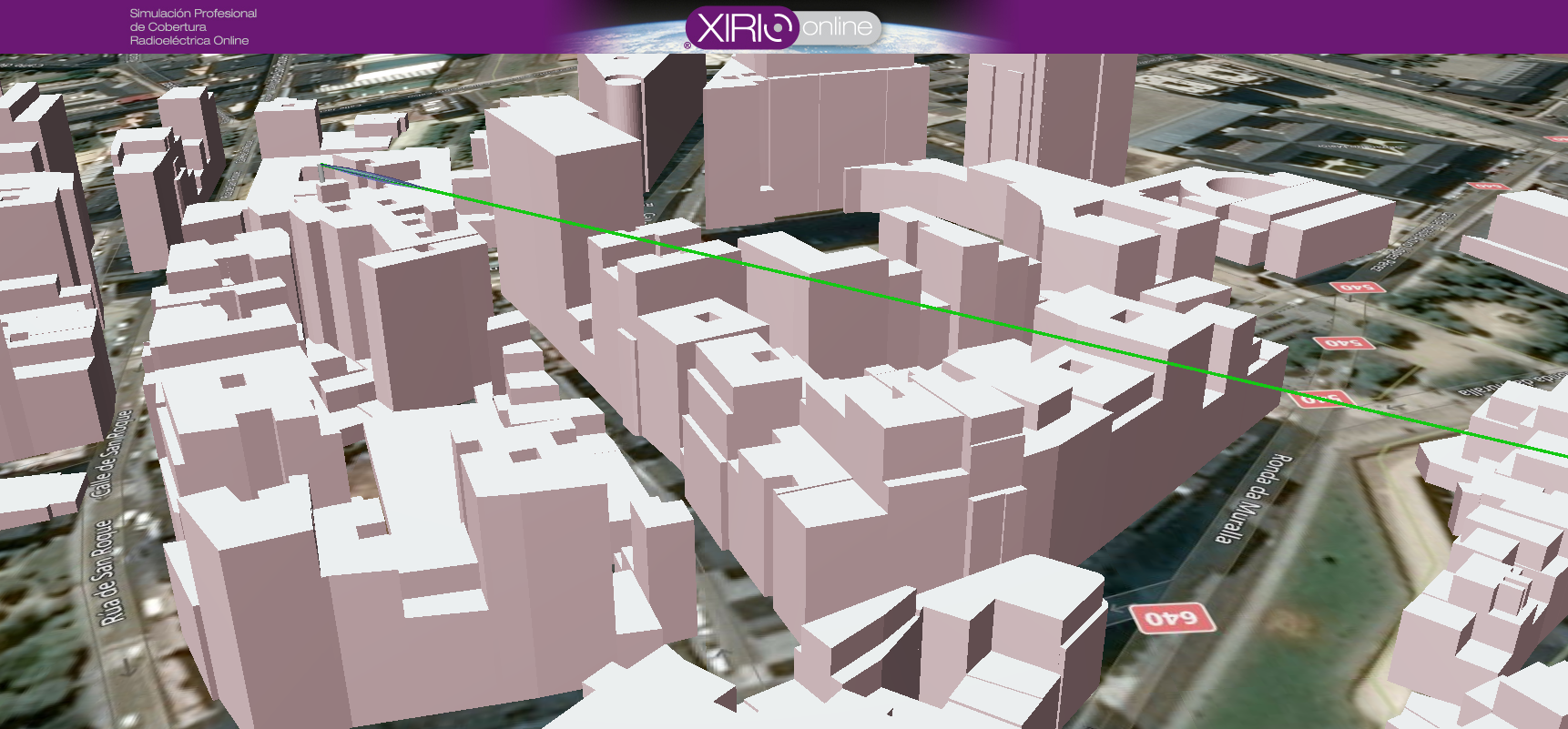

In the link study this functionality is available from the study actions panel. A 3D representation of the environment of the study sector is automatically generated. In addition, if there is an elevation layer compatible with this representation, the nearby buildings to the line of sight between the two ends will be raised.
