This tool calculates the orographical cross section between two points. You can access this feature by selecting profile on the toolbar.

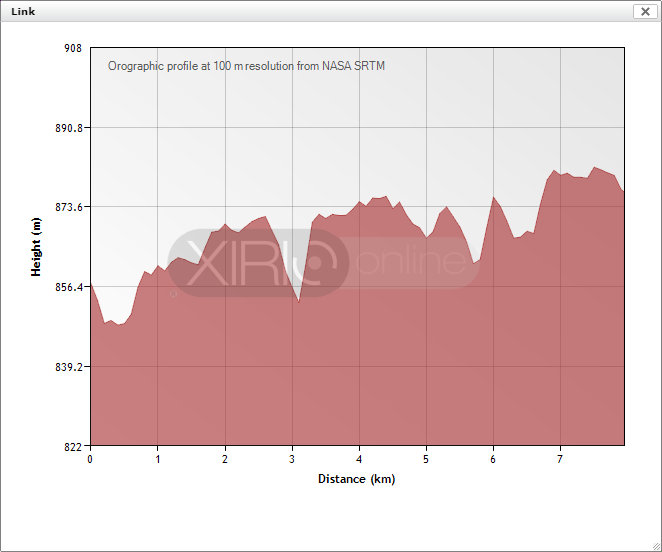

Clicking the viewer the first point of calculation is set. At this time, like in calculating distances, as you move the cursor over the viewer you can see the distance and azimuth on the status bar that sits just below the viewer. When the second point of calculation is set, a plot is presented with the geographic profile of the section.
