FEEDER

Inicio  Anterior  Siguiente



The Xirio feeder corresponds to the typical concept of Radio Frequency cable or waveguide between transceiver / receiver element and the antenna, not considering combinatorial elements, dividers or connectors. Since they can be used at various frequencies they can be formed by one or more attenuations. Each of these attenuations has associated a working frecuencies range, so that the union of all these ranges determine the feeder working frecuencies range.

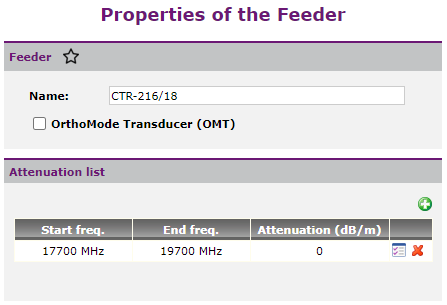

The following image shows the window related to the feeder parameters:

feeder

In the feeder dialog, the user can configure feeder parameters:

Name.

OrthoMode Transducter (OMT).

List of attenuations, whose parameters are editable in the dialog:

oInitial frequency.

oFinal frequency.

oAttenuattion (dB/m).
