TRANSMITTER

Inicio  Anterior  Siguiente



The object transmitter in Xirio corresponds with the typical concept of radio frequency “transmitter”, although the finished transmission system is contemplated within this object, that is, in addition to the physical transmitter, the radiant system and the specific emission parameters.

To create the transmitter the user can either create it from a template or create a new one. In the first case a copy of the selected template will be loaded , so that the template will not be modified.

Then it is necessary to set the transmitter parameter, its name and location.

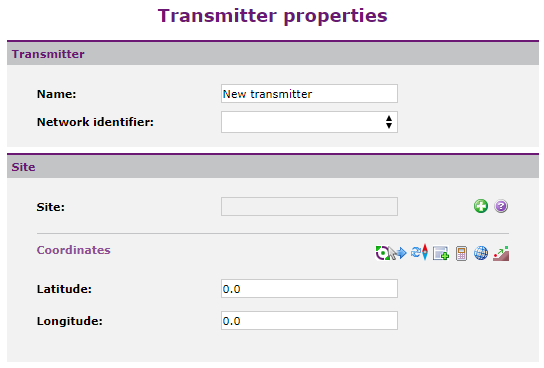

coverage_tx

The location data (longitude and latitude) can be entered manually, using a template, accessing with the icon add_common_small or selecting a point on the viewer clicking cursor_Tx.

The user also has a coordinate calculator calculator, to convert geographical coordinates to UTM and vice versa.

In this window there is a link to configure the transmitter radio parameters.

PARAMETERS OF BROADCASTING SERVICES WITH SFN TECHNOLOGY

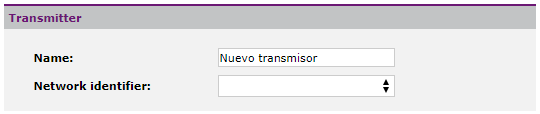

coverage_tx_sfn



Network identifier: Identifier of the network to which the transmitter belongs.

LTE AND LTE-A MOBILE SERVICES PARAMETERS

In the case of LTE and LTE-A services, the transmitter has as configurable parameters the Station and the PCI.

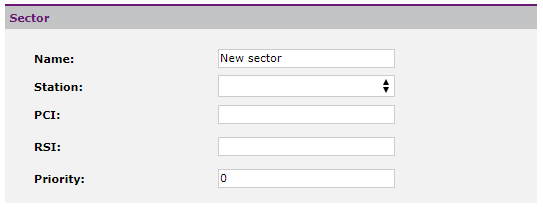

coverage_tx_pci



Station: Station to which the transmitter is linked.

PCI (Physical Cell ID): Cell identifier within the network. This parameter is involved in the evaluation of interferences.

TRANSMITTER ACTIONS

It is possible to access the following options from transmitter Action window:

coverage_tx_actions

Modify transmitter. From this option you can access the transmitter configuration window.

Optimize transmitter location. Modify transmitter location to find the highest point near the station. It is a very useful tool when the accuracy of the station coordinates is not very high.

Center viewer. Locate the selected transmitter on the viewer.

Undo last movement. Cancels the last modification of trasnmitter's position. This action is very useful when the station was moved by mistake.

Create template from the transmiter. Create a template as a copy of the transmitter, accessible from Template Manager.
