MOBILE TERMINAL LTE PARAMETERS

Inicio  Anterior  Siguiente



All LTE parameters of the mobile terminal, initially are configured by default when selecting the study service (technology), with values ​​appropriate or typical of the simulation to perform. It is recommended, to be checked and specified by the user to adapt their simulation to reality.

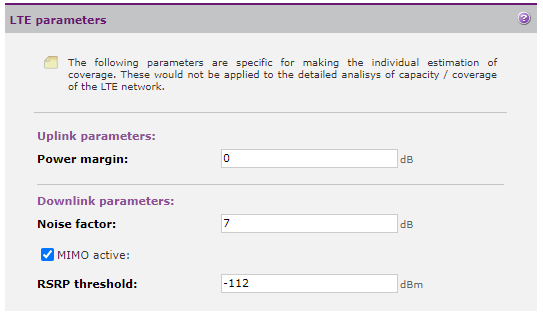

lte_params_rx

Depending on the path (ascending or descending) to simulate, the Downlink or Uplink parameters specified in the LTE parameters will be used in the calculation.

Noise factor (dB). Noise factor of the mobile terminal.

Active MIMO. Indicates whether the mobile terminal is able to take advantage of the sector MIMO configuration.

RSRP threshold (dBm). Power required in RSRP signal reception. The range of RSRP signal values ​​the terminal can report to the sector varies from -140 dBm to 44 dBm. The user must select an appropriate threshold for simulations.
