RADIATING CABLES CATALOG

Inicio  Anterior  Siguiente



In Xirio it is possible to configure a radiating cable instead of the antenna. It is a radiation system that behaves like an antenna along its length.

Radiating cables catalog allow to create in the different studies, preconfigured radiating cables with values set by the user.

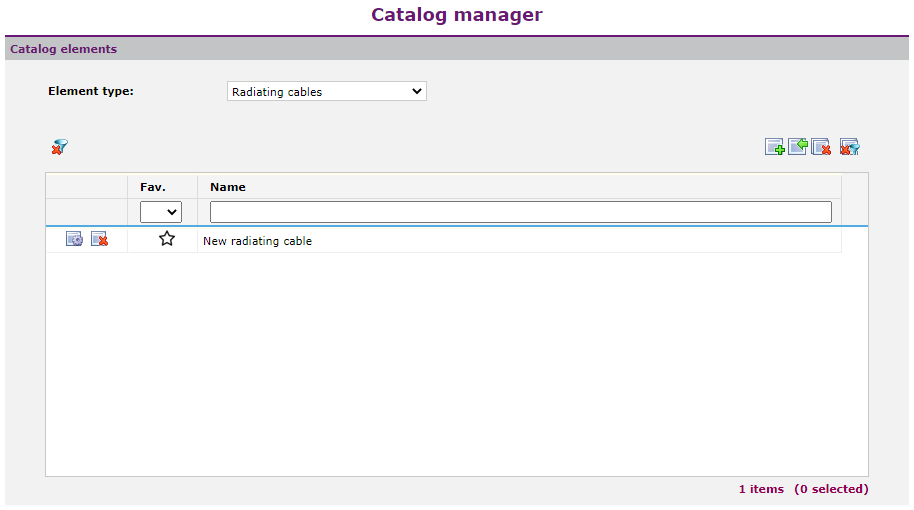

The user has available filter by name of the radiating cables:

templates_radiating_cable

Filter by name: This textual filter supports wildcard characters such as the asterisk (*) or the query (?).

Show only favorite items: In addition, the user can define their favorite catalog items favorite_checked to perform a filtering that only shows these items



Once the user clicks "Search" button, a filter will be combined with all the options selected by the user. In the case that there is no entry that fulfills all the selected features, the lower list will be empty.

The user can modify, edit or consult each catalog element using the radiating cable edition dialog.
