CATALOG MANAGER

Inicio  Anterior  Siguiente



The catalog allows the user to configure certain elements (antennas, sites, radio equipment, feeders, etc.) by means of creating default parameterizations of these elements, as templates, so that they can be added quickly and easily to the studies.

You can access the catalog manager from the icon templates in the toolbar.

To create a catalog element, first it is necessary to choose its type from a drop-down list as shown in the figure below:

templates_manager_type

Some of the catalog elements presented in the previous image are not available in all Xirio versions.

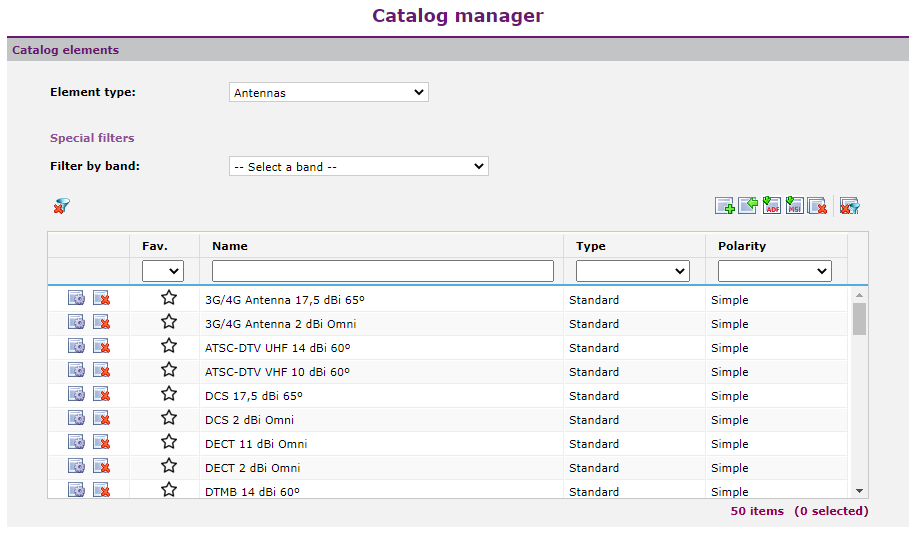

Filtering by name is available for all catalog elements, and some element types will include other specific filters. For example, filtering by service is only available for Calculation Methods; however, the elements of type Antennas, Feeders and Radio Equipments have band filters. Some of these filters are in the following image:

templates_manager

Depending on user permissions, the elements in the catalog can be consult, modify, delete or create.

More details on creating elements in the catalog are available depending on each type:

Frequency bands

Radio Equipments

Antennas

Methods

Feeders

Locations

Transmitters

Receivers

Colors range
