RADIATING CABLE

Inicio  Anterior  Siguiente



In Xirio it is possible to configure a radiating cable instead of the antenna. It is a radiation system that behaves like an antenna along its length.

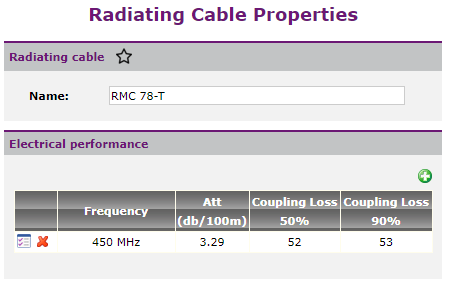

The following image shows the window relating to the radiating cable parameters:

radiating_cable

Within the radiating cable dialog, the user will be able to configure the parameters of the radiating cable:

Name.

List of electrical performance, whose parameters will be directly editable in the dialog:

oFrequency.

oCable attenuation (dB/100m).

oCoupling losses 50%.

oCoupling losses 90%.
