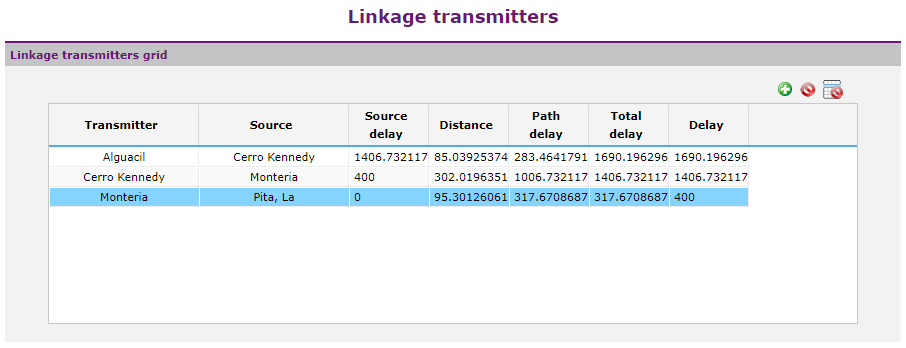

In broadcasting services, the user can access the transmitters linkage table by clicking on the icon available at the top of the "Network coverages" section within the multitransmitter coverage parameters. This table shows all the transmitters that have a source transmitter configured, as well as some information related to the signal delay between them.

•Transmitter. Name of the transmitter to assign a source of the signal to be rebroadcast.

•Source. Name of the source transmitter of the reemitted signal.

•Delay. Delay in µs of the transmitter. This delay should never exceed the accumulated delay of the source transmitter and the path between them.

•Source delay. Delay in µs of the source transmitter.

•Distance. Distance in meters between both transmitters.

•Path delay. Delay of the signal in µs as it travels the distance between the two transmitters.

•Accumulated delay. Accumulated delay between the source delay and the path delay.

When the delay of a transmitter is less than the accumulated delay, the row is marked in the table as an incompatibility. By clicking the button Propagate, the user can perform a delay propagation. In this way, all incompatibilities are eliminated by assigning the accumulated delay to each of the transmitters. The links that did not have any incompatibility remain unchanged.
