COMMON MODIFICATIONS

Inicio  Anterior  Siguiente



This functionality allow to modify several parameters in single studies (coverages or profiles) included in a multiple study (multicoverage or transport network) simultaneously. The parameters may vary according to the working technology and study:

Band.

Transmitter radio parameters.

Reception radio parameters.

Path type.

3G parameters.

Calculation method.

Cartography layers.

Signal ranges.

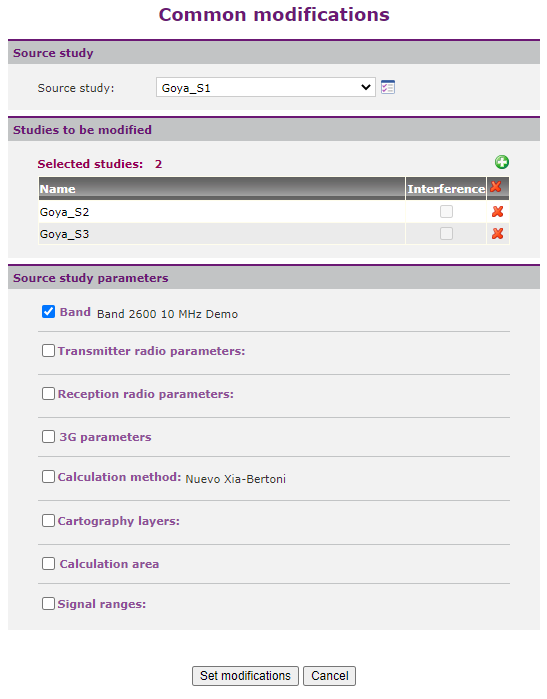

To perform common modification follow these steps:

1.Source study: Select the study to modify and make the changes.

2.Studies to be modified: Add to the list all studies to apply changes. The study selected as source study will not be included in the list

3.Source study parameters: Select from the list of parameters those to apply modifications.

common_modif_01

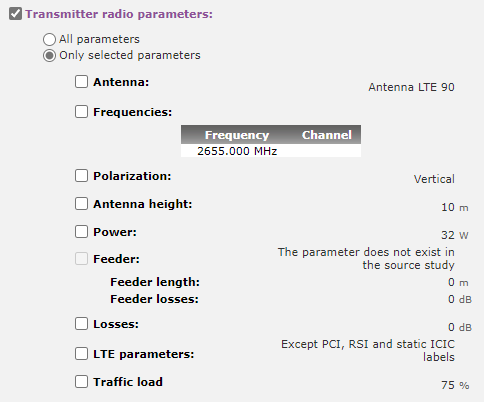

Some of these parameters are composed by many fields. The user can modify all of them or make a selection.

common_modif_02
