ENDS SECTION

Inicio  Anterior  Siguiente



This section allows to configure the initial and final end of the radio link, as well as all jumps in passive repeaters that exist between them. By default there is only End 1 and End 2, but the user can add between them one or more passive repeaters clicking add_common_small. As passive repeater there are two options "Mirror" or "Back to back". Because of that, this section will contain ends, mirrors and back to back.

ENDS PROPERTIES

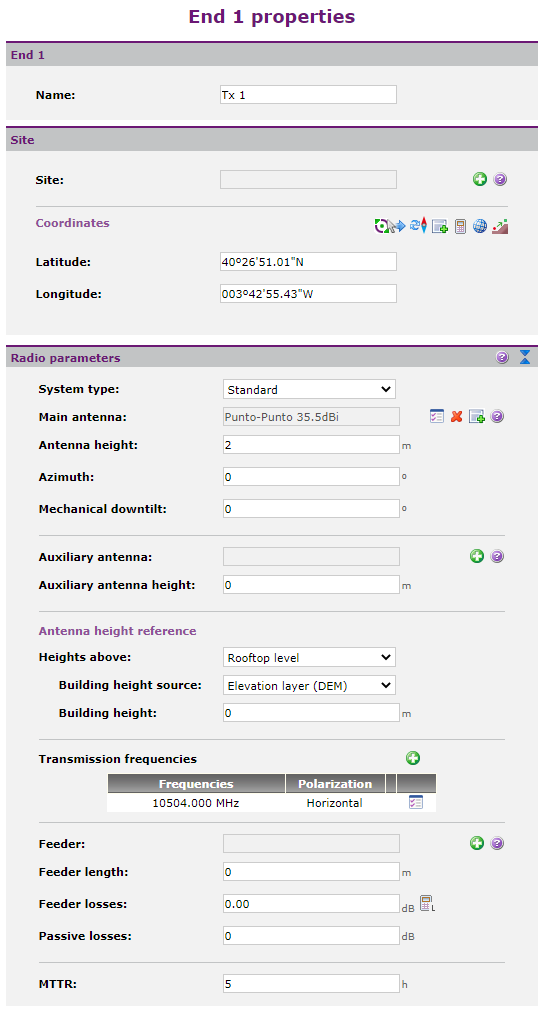

The following image shows the page appearance of the end properties:

end

The user can consult or modify the following parameters for each end:

End Name. It is the location name or code. .

Location. It is the site (station) where the end is located. . Once selected, the user can consult their values.

Latitude and Longitude (Geographical WGS84). They are the real coordinates in which the end is located and specifically its main antenna. They may or may not be the location coordinates. The user can enter the coordinates manually, using the button "Select a point on the viewer", the coordinate calculator calculator and even optimize them by looking for a higher point nearby. It is also possible to copy the location coordinates end with the corresponding button, in this case the end and the location are geographically the same.

Main Antenna.

Height. De la antena principal, tiene que tener coherencia con las alturas construida de la base de la torre seleccionada.

Antenna orientation and tilt.

Auxiliary antenna. This antenna can work as an anti-reflective mechanism, provide diversity or anti-XPD protection.

Auxiliary antenna height. Tiene que tener coherencia con las alturas construida de la base de la torre seleccionada.

Transmission frequencies list. It includes polarizations..

Feeder, length and losses.

Auxiliary losses.

MTTR (Mean Time To Repair).

PROPERTIES OF THE MIRRORS

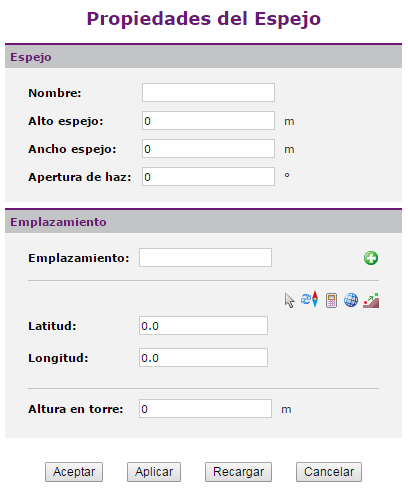

The following image shows the page appearance of the mirror properties:

mirror

The user can consult or modify the following parameters for each mirror:

Name. It allows the user to identify the mirror. If the user uses a site to locate the mirror, it will be the same as the location one, and so it can not be edited.

Mirror width and height.

Mirror beamwidth.

Location. It is the site (station) where the mirror is located. . Once selected, the user can consult their values.

Latitude and Longitude (Geographical WGS84). They are the real coordinates in which the mirror is located. They may or may not be the location coordinates. The user can enter the coordinates manually, using the button "Select a point on the viewer", the coordinate calculator calculator and even optimize them by looking for a higher point nearby. It is also possible to copy the location coordinates end with the corresponding button, in this case the mirror and the location are geographically the same.

Tower height.

PROPERTIES OF THE BACK TO BACK

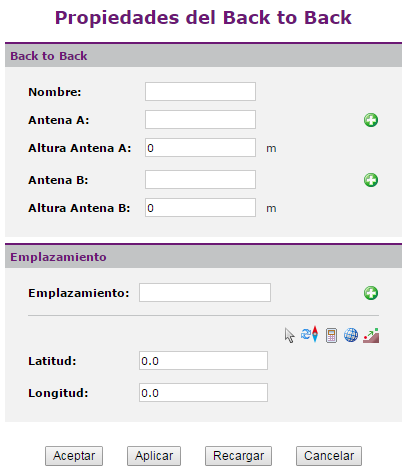

The following image shows the page appearance of the back to back properties:

back_to_back

The user can consult or modify the following parameters for each back to back:

Name. It allows the user to identify the back to back. If the user uses a site to locate the back to back, it will be the same as the location one, and so it can not be edited.

Antenna A.

Antenna A height.

Antenna B.

Antenna B height.

Location. It is the site (station) where the back to back is located. . Once selected, the user can consult their values.

Latitude and Longitude (Geographical WGS84). They are the real coordinates in which the back to back is located. They may or may not be the location coordinates. The user can enter the coordinates manually, using the button "Select a point on the viewer", the coordinate calculator calculator and even optimize them by looking for a higher point nearby. It is also possible to copy the location coordinates end with the corresponding button, in this case the back to back and the location are geographically the same.
