Radio equipment in Xirio is only used in fixed service link and transport network studies. Radio equipment includes microwave link specific parameters, necessary for the quality and unavailability calculation.

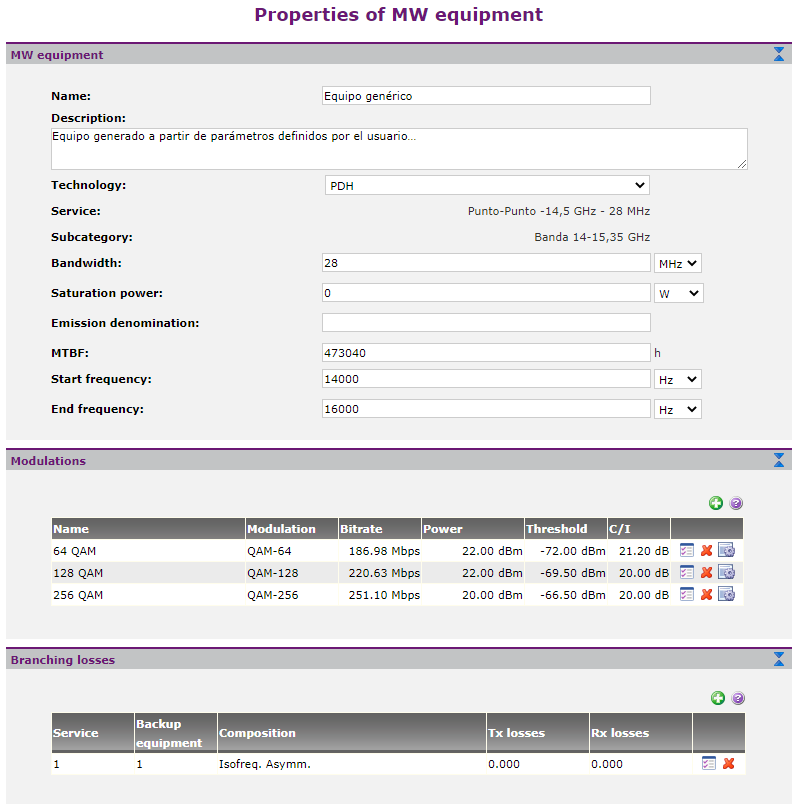

In this section the user can select the radio equipment to use in the radio link. For this, in the radio equipment has a selection dialog. The radio link equipment configuration has the parameters shown in the picture.

In the radio equipment dialog the user can configure the following parameters:

•Equipment properties:

oName.

oDescription.

oService. Not editable.

oGeneric Frequency band. Not editable.

oBandwidth. Configured by default to the band channeling.

oReceiver Saturation Power.

oEmission designation.

oMTBF (Mean Time Between Failures). Necessary parameter for unavailability calculations in radio links.

oInitial and final frecuencies. Radio equipment working range.

•Modulations: A table shows the basic modulations parameters that radio equipment can use. These parameters can be edited in the table. Modulations have advanced parameters that can be configured clicking .

•Splitters losses: When there are safety settings, for example: N+1, it is necessary to configure losses introduced by the splitters that join them, also called branching.
