The table for the assignment of RSIs (Root Sequence Index) makes it easy for the user to specify these cell identifiers for each transmitter within the network. In order to view the RSIs assignment table, it is necessary to have previously performed the signal calculation of the multitransmitter coverage study and the neighbouring assignment (automatic or manual).

This table shows, for each sector of the multi-transmitter coverage study, the sector name, the base station to which it belongs and the manually calculated or assigned RSI. Only the RSI value is editable by the user through this table.

The RSIs assignment dialog allows the user to perform the following actions:

•The Calculate button starts the automatic RSIs calculation process (see next section).

•The Assign button replaces the RSI of each sector of the study with the RSI value that the sector has established in the table.

•The icon allows clearing the RSI assigned to all the sectors.

•The icon allows clearing the RSI assigned to the sectors selected in the table (allows multiple selection).

•The icon offers the possibility of exporting the table to a file in Microsoft Excel format.

•The icon offers the possibility of importing a new table from a file in Microsoft Excel format.

AUTOMATIC RSI CALCULATION

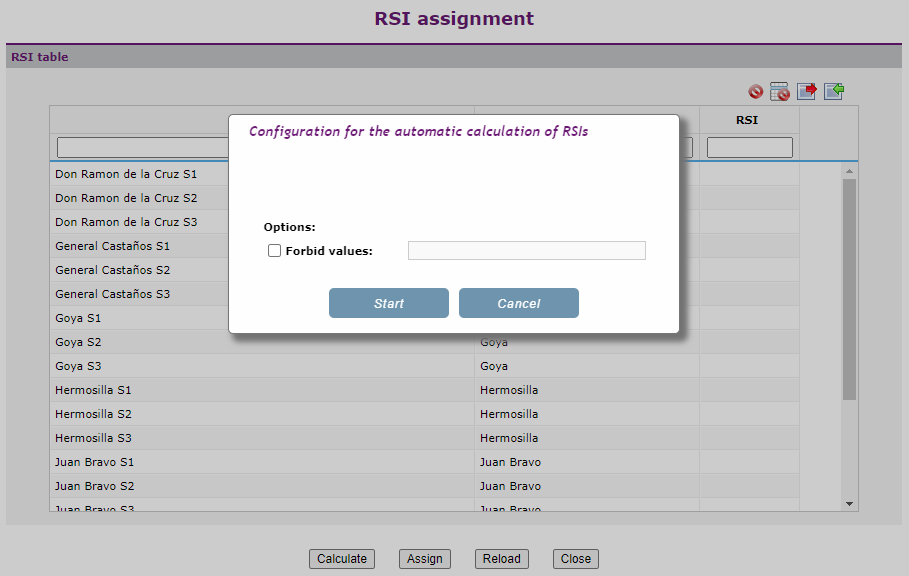

This functionality facilitates the assignment of the RSIs for each transmitter within the network based on a series of rules and from some configuration parameters. The interface for this calculation will be similar to the one shown in the following figure, where the user is allowed to configure the following elements:

•Options. It allows selecting the relationships that will be taken into account to perform the automatic assignment of RSIs:

oForbid certain values ​​of RSI.
