COLOURS RANGE CATALOG

Inicio  Anterior  Siguiente



The colors or signal ranges allow to set different received signal level ranges. Each interval is assigned to a color for the subsequent visualization of results.

Colours range catalog allow to create in the different studies, signal ranges preconfigured with values set by the user.

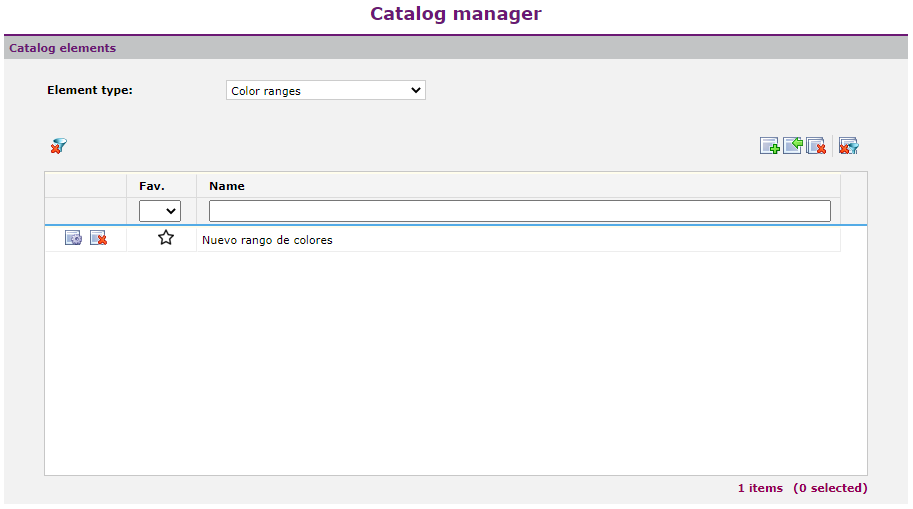

The user has available filter by name of the calculation color range:

templates_signal_ranges

Filter by name: This textual filter supports wildcard characters such as the asterisk (*) or the query (?).

Show only favorite items: In addition, the user can define their favorite catalog items favorite_checked to perform a filtering that only shows these items



Once the user clicks "Search" button, a filter will be combined with all the options selected by the user. In the case that there is no entry that fulfills all the selected features, the lower list will be empty.

The user can modify, edit or consult each catalog element using the signal ranges edition dialog.
