<< Pulse para mostrar la Tabla de Contenidos >> INTERFERENCE REPORT (OPTIONAL) |

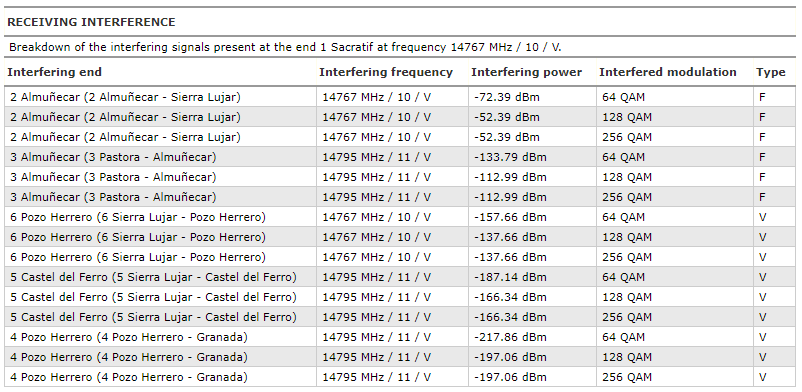

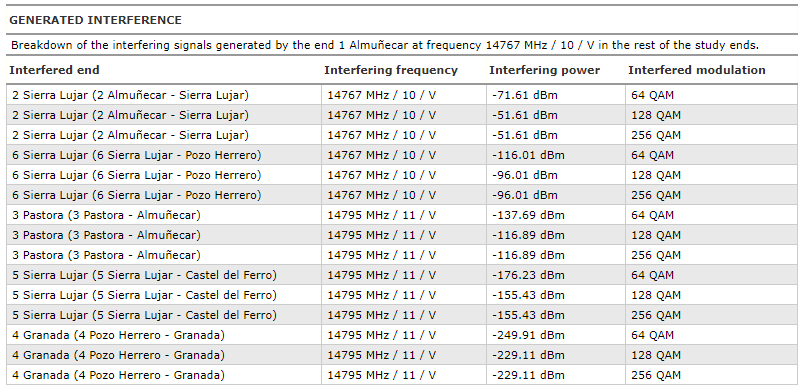

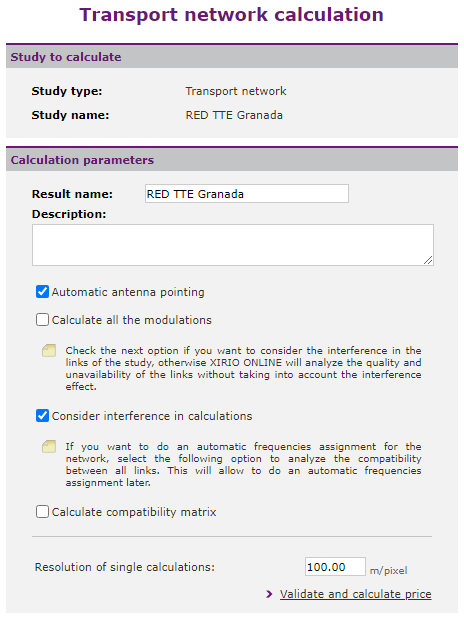

The interference report is only calculated when a link is configured as a "Link under study" in a Transport Network study and "Consider interference in calculations" option is activated in the calculation dialog. The interference report has the following information: •For each modulation, received power. •For each modulation, total interfering power. •For each modulation, C/I. •The breakdown of all receiving interfering powers (indicating end, interfered link and interference type (fixed, variable or semi-variable). The interfering power value shown is the result considering Antenna discrimination, NFD discrimination and cross polarization discrimination. •The breakdown of all generated interfering powers (indicating end and interfered link). The interfering power value shown is the result considering antenna discrimination, NFD discrimination and cross polarization discrimination. |
