VISIBILITY

Inicio  Anterior  Siguiente



The line that connects ends in the viewer becomes a result after performing a calculation, it identifies by color coding the different link visibility areas:

Clear path (green color). The land or buildings do not obstruct neither the direct ray nor 60% of first Fresnel ellipsoid.

Semi-clear path (orange color). The land or buildings do not obstruct the direct ray, but 60% of Fresnel ellipsoid brush.

Blocked path (red color). The land obstructs the direct ray.

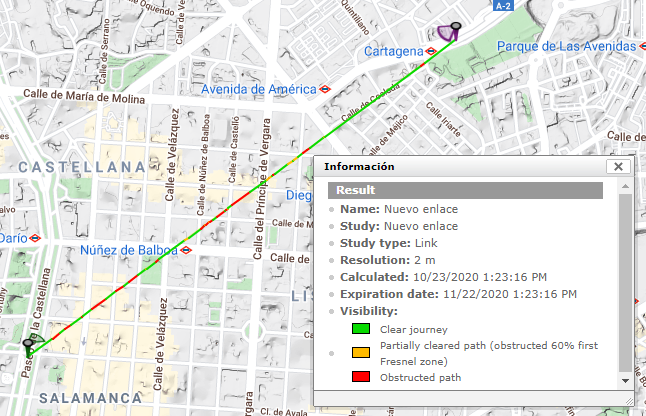

link_result_colors

It is important to know that if in calculation morphographic layer is used, if it has height correction, visibility will have this correction to determine if there is a clearing or not.
