COVERAGE STUDY ACTIONS

<< Pulse para mostrar la Tabla de Contenidos >>

Navegación:  Studies > Coverage > Coverage Study Actions

COVERAGE STUDY ACTIONS

Inicio  Anterior  Siguiente



You can access the following options from the actions panel of the coverage study:

coverage_actions

Modify study. From this option, you access the coverage configuration window.

Center viewer on study. Locates the selected coverage on the viewer.

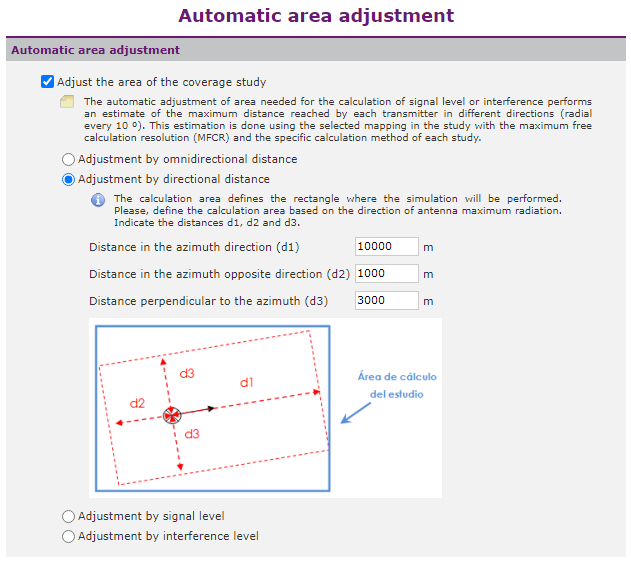

Adjust area. This option provides a wizard that helps to define coverage calculation area based on a radio, signal level, or interference level.

adjust_area_auto_cov

Make a copy of the study. Creates a copy of the selected study. This copy opens in the viewer and in legend automatically.

Sectorize study. Allows to divide a coverage study in several studies (sectors) according to sectors number indicated by the user.

Delete study. Deletes the selected study, with all the radio elements, from the user's account.

Close study. Closes the selected study and removes its result from the viewer.



In addition, the panel lower section offers the following options related to the study calculation:

Free low-resolution calculation. This option performs a free calculation of the selected study. It is very useful to make a rough coverage estimation and thus to adjust calculation area manually.

High-resolution calculation.his option performs a high-resolution calculation of the selected study. A window appears where calculation resolution can be set and, also, calculation cost and cartography are detailed before starting. It will be necessary to validate data shown on this screen before proceeding to study calculation.

Coverage statistics calculation. It's a detailed report with information about the covered population and area percentages. Before calculation the user have to select and geopolitical layer to perform calculation.
