TRANSPORT NETWORK ACTIONS

Inicio  Anterior  Siguiente

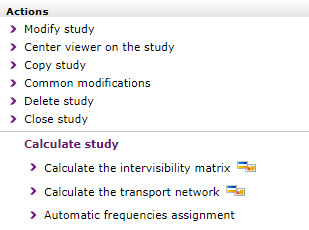

You can access the following options from the Actions window of Transport Network study:

link_network_actions

Modiy study. From this option, you access the transport nerwork configuration window.

Center viewer on study. Locates the selected transport network on the viewer.

Copy the study.  It makes a copy of the sepected study, included the profiles contained in it.

Delete study. Deletes the selected study, with all the radio elements, from the user's account.

Close study. Closes the selected study and removes its results from the viewer.



In addition, the window lower section offers the following options related to the study calculation:

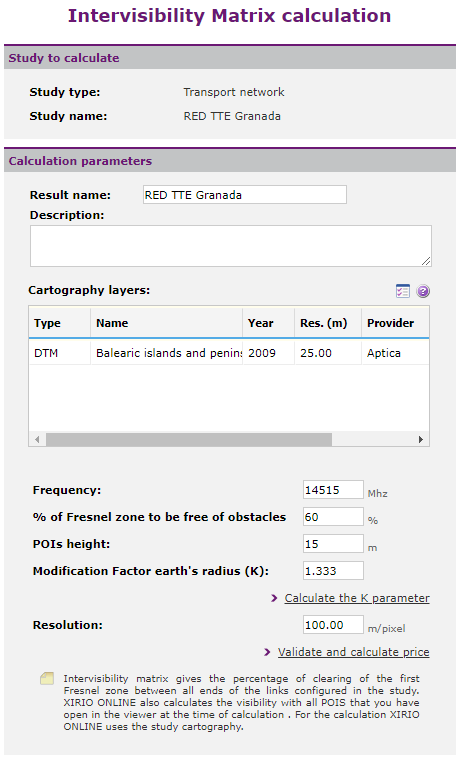

Calculate the intervisibility matrix. he iIntervisibility matrix gives the percentage of clearance of the first Fresnel zone between all ends of the profiles configured in the study. Xirio Online also calculates the visibility with all POIs open in the viewer at the time of calculation . For the calculation Xirio Online uses the cartography set in the study. Selecting this option a window will be displayed where parameters for calculation can be set and, also, it is detailed calculation and cartography price before beginning. It will be necessary to validate data shown in this screen before proceeding to calculation.

link_network_intervisibility_matrix

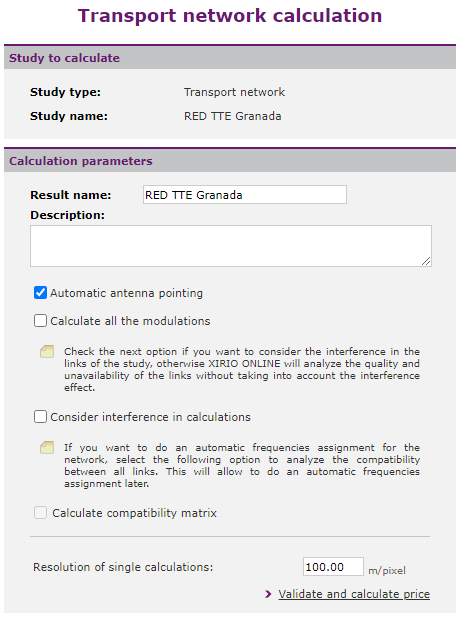

Network study calculation.  It allows to realize quality and unavailability calculation on digital hops selected by the user. Selecting this option a window will be displayed where parameters for calculation can be set and, also, it is detailed calculation and cartography price before beginning. It will be necessary to validate data shown in this screen before proceeding to calculation.

If you want to consider the interference produced in study links it is necessary to select the option "Consider interference in calculations"; Otherwise previous links quality and unavailability will be analyzed without taking into account its effect. There is also the option to "Guide antennas automatically", so the user does not have to do it manually.

link_network_calculate
