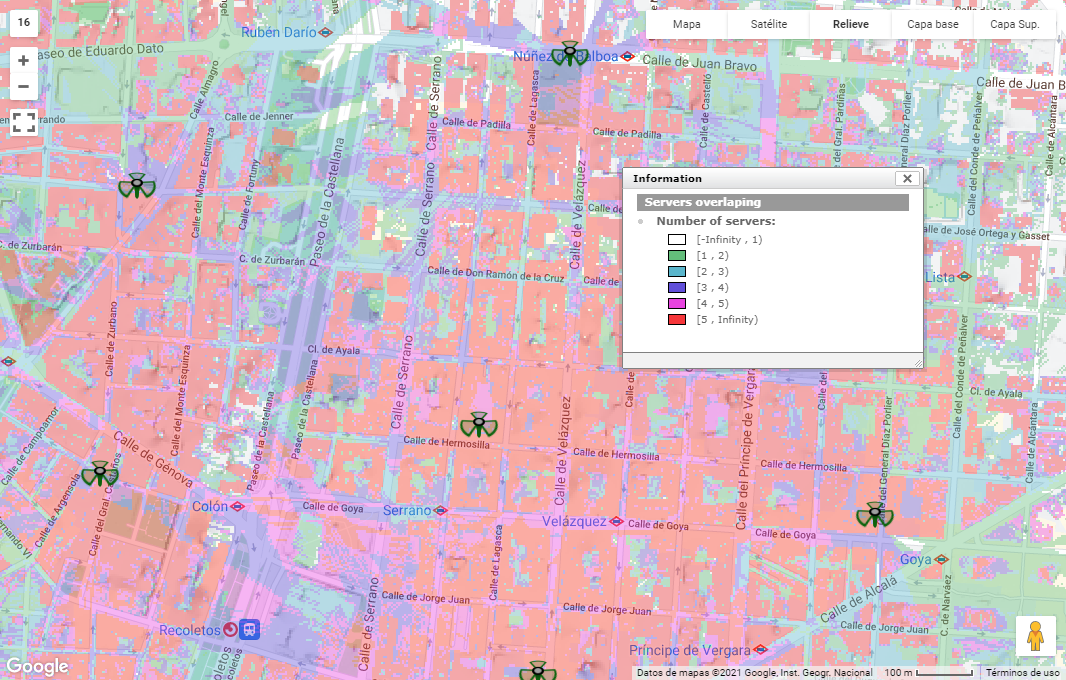

This result represents at each point the number of signals from different transmitters which are higher than the reception threshold value of the associated receiver, that is, the number of transmitters that are competing to be the "best server" at that point. This result can provide an indicative image of geographical areas susceptible to interference by having a high radio occupation.

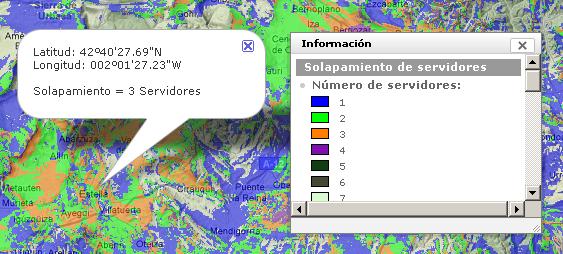

The "Read value in a point" action on an overlappìng result reports the number of transmitters that provide coverage above the reception threshold at the selected point in the viewer. In the example, "Overlapping = 3 Servers" means that at that point, whose coordinates are also reported, the number of transmitters that provide coverage above the threshold is 3. Likewise, the information window shows the color assigned to each transmitter in the multi-coverage.


For further information about actions that can be performed on a multi-coverage result.
