ACTIONS OF MULTITRANSMITTER COVERAGE RESULT

Inicio  Anterior  Siguiente



Actions that can be performed on a multi-coverage result or on the interference result are:

multicoverage_result_actions

These actions are available in the table of actions when you select one of the three visual layers available on the legend tree:

multicoverage_result_leyend

Read value in a point. Check value in a point of signal, best server and overlapping results. It also shows signal level of each individual coverage from the study. When the interference result is concerned, the value shown will be the C / I ratio.

Center viewer on result. Locates the selected result on the viewer.

Open result in Google Earth. Run Google Earth application to open the three results layers.

Download result in KMZ format. Save a Google Earth file with the three calculation results on the user's computer. This operation may take several seconds while Xirio prepares the corresponding file for download, depending on data volume to be stored.

Delete result. Deletes the selected result from user account

Close result. Closes the result and removes it from the viewer.

Actions of results layer

In particular, each visual layer (signal, best server or overlapping) of a multi-coverage result and the interference results layer is associated with the following actions:

coverage_result_signal_actions

These actions are available in the actions window when the corresponding visual layer is selected in the legend tree:

multicoverage_result_overlap_leyend        multicoverage_result_interference_leyend

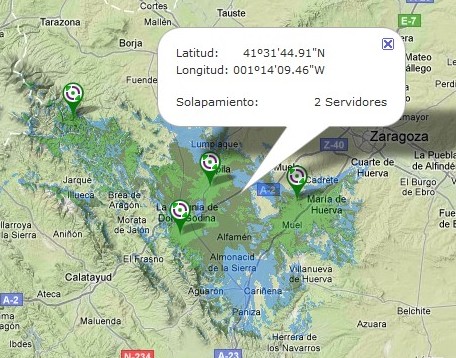

Read value in a point. Check value in a point in the selected results layer of the multi-coverage. When the interference result is concerned, the value shown will be the C / I ratio.

multicoverage_result_read_overlap_2

Export result. It allows download the selected result layer at the user's computer.

Change the signal range colors. This action allows to change color ranges associated with different signal levels and add new ones. It is available only for the signal level layer.

coverage_result_ranges_modify        coverage_result_ranges_add
