When a Xirio study is calculated, a result of simulation is stored in the user's account, indicating its calculation date and its expiration date. This result depends on the radio elements of the study and the chosen method of calculation.

In addition to accessing your own results, Xirio allows to publish and share these results with other users, as well as create and manage your own visualization users.

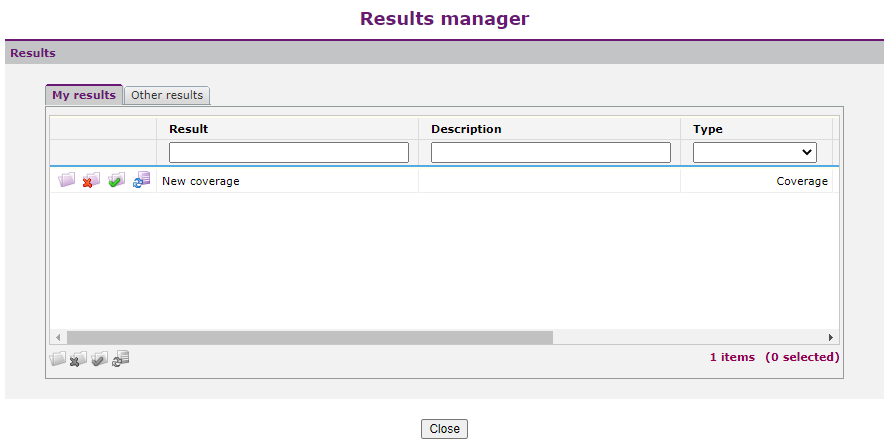

A result is opened by selecting the icon open_results on the toolbar. This option can also be accessed by selecting the "Results" folder of the caption, and then "Open Results Manager".

The dialog that opens is very similar to the Studies Management. In this case is it also possible to differentiate between own results and results from other users.

Depending on type of the calculated study, there are different results.

Link Result

Coverage Result

Multi-coverage Result

Coverage Statistics Result

Transport Network Result


Xirio also offers tools to manage their results with maximum efficiency. In addition to sharing their simulations results with other people, it is possible to import results calculated in the radio planning tool Sirenet. For further information:

Publish results

Visualization results

Import results from Sirenet

Export results


From the action panel of the result folder, the user can access to the following options:


Open results Manager. It shows a window with all the results in the user account. This results can be short by the type of result, date, etc.

Close all results. It closes all the open results for the actual session.
